| Description / Model | ACR 10 | ACR 20 | ACR 30 | ACR 50H | ACR 50H-2C |
|---|---|---|---|---|---|
| Suitable Excavator (ton) | 0,8 – 1,5 | 1,5 – 3,0 | 3,0 – 7,0 | 5,0 – 9,0 | 5,0 – 9,0 |
| Operating Weight (kg) | 150 | 210 | 380 | 450 | 490 |
| Operating Pressure (bar) | 190 – 210 | 190 – 210 | 190 – 210 | 190 – 210 | 190 – 210 |
| Crushing Force (ton) | 21 | 25 | 30 | 38 | 48 |
| Max Opening Jaw mm | 300 | 362 | 449 | 550 | 620 |
| Cutter Length mm | 90 | 90 | 120 | 120 | 100 |

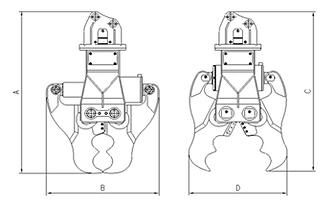

| Length mm | 991 | 1127 | 1388 | 1520 | 1350 |
| Width mm | 592 | 731 | 885 | 1023 | 900 |
Doble cilindre / simple cilindre
